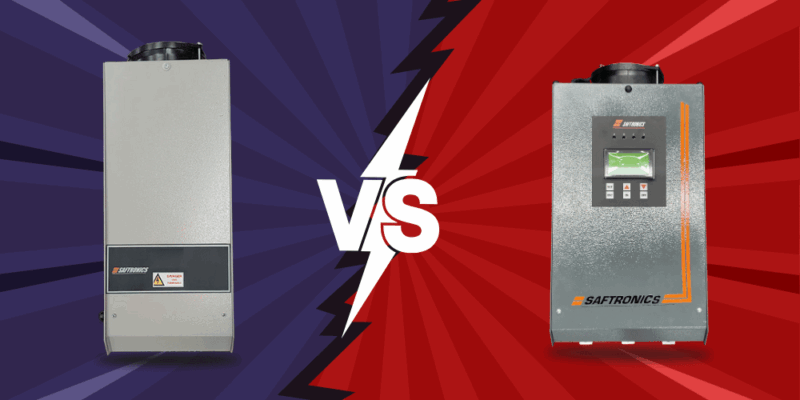

In industrial and residential heating applications, precise control of heating elements is crucial for efficiency, performance, and energy savings. Two common methods for controlling heater elements are Burst firing (Saftronics SH4) and phase angle control (Saftronics DSH6). Both techniques have their distinct advantages and are suited to different types of applications. We will detail some differences between Burst Firing and Phase Angle heater controllers, to help you understand which might be the best fit for your needs.
Burst Firing Control
Burst firing, also known as zero-crossing switching or time-proportional control, involves switching the heater element on and off at the zero-crossing points of the AC voltage waveform. This method allows for full cycles of the AC waveform to be delivered to the heater in a controlled manner.
Advantages:
- Reduced Electrical Noise
Since burst firing switches at zero-crossing points, it minimizes electrical noise and reduces the likelihood of creating electromagnetic interference (EMI), which is particularly beneficial in sensitive electronic environments. - Energy Efficiency
By delivering full AC cycles to the heater, burst firing ensures that the power delivered is efficient and consistent, leading to potential energy savings. - Simpler Design
Burst firing controllers are often simpler in design compared to phase angle controllers, making them more cost-effective and easier to implement in certain applications. - Longer Heater Element Life
The on-off nature of burst firing reduces the thermal stress on heating elements, potentially extending their lifespan.
Disadvantages:
- Slower Response
Burst firing may not be suitable for applications requiring rapid temperature changes, as the on-off cycles can result in slower response times. - Less Precise Control
The control resolution is lower compared to phase angle control, which can be a drawback in applications needing very fine temperature regulation.
Phase Angle Control
Phase angle control, on the other hand, adjusts the power delivered to the heater by controlling the point within each AC cycle where the voltage is turned on. This allows for fine-grained control of the power delivered to the heating element.
Advantages:
- Precise Temperature Control
Phase angle control provides very precise control over the power output, making it ideal for applications requiring exact temperature regulation. - Rapid Response
The ability to adjust power within each AC cycle allows for faster response times to changes in temperature demands, which is crucial in dynamic heating applications. - Smooth Power Delivery
Phase angle control provides a smooth and continuous power delivery, which can be beneficial for certain types of heating elements and processes.
Disadvantages:
- Increased Electrical Noise
The main drawback of phase angle control is the increased electrical noise and EMI it generates, which can interfere with other electronic devices and require additional filtering. - Complex Design
Phase angle controllers are generally more complex and costly to design and implement compared to burst firing controllers. - Potential Shorter Heater Life
The continuous adjustment of power can cause more thermal stress on heating elements, potentially reducing their lifespan.
Applications and Selection Criteria
The choice between burst firing and phase angle control depends largely on the specific requirements of your application.
Burst Firing:
Ideal for applications where electrical noise must be minimized, where slower response times are acceptable, and where cost-effective and simpler designs are preferred. Common applications include heating elements in residential or industrial environments where precise control is not critical.
Phase Angle Control:
Best suited for applications requiring rapid and precise temperature control, despite the potential for increased electrical noise. Typical uses include laboratory heating equipment, plastic extrusion processes, and other industrial applications where exact temperature regulation is crucial
Conclusion
Both burst firing and phase angle control methods offer distinct benefits and are suited to different types of heating applications. By understanding the differences between these control methods, you can select the most appropriate one for your specific needs, ensuring efficient and effective temperature management in your systems.
