High-performance medium-voltage AC drives with advanced frequency inverter technology for industrial motor control.

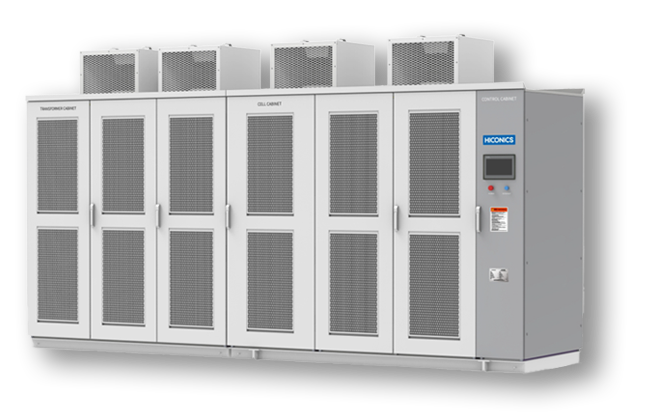

Hiconics Medium-Voltage AC drive
  • Medium-voltage drive solutions from 315kVA to 60MW
  • Air-cooled and water-cooled series available
  • High efficiency with low harmonic distortion
  • Solutions for general, space-saving and four-quadrant applications
Enquire

MV AC Drive Enquiry



MV AC Drive Enquiry
Hiconics Medium-Voltage AC drive

Technical Overview

Rated Capacity Rated Input Voltage
315kVA – 60MW 6kVA / 10kVA
Request a quote

MV AC Drive Request A Quote



MV AC Drive Request a Quote

Summary

Advanced Medium-Voltage Drive Technology

The Hiconics HC Series of medium-voltage AC drives combines advanced multilevel frequency inverter technology with high-performance motor control for industrial applications from 315kVA to 60MW. Designed for pumps, fans, compressors, conveyors, mills and other demanding applications, these medium-voltage variable frequency drives deliver exceptional efficiency, reliability and power quality.

The Hiconics HC Series offers a comprehensive range of medium-voltage frequency inverters for industrial motor control. Available in four specialized series, the range provides an efficient solution for both new installations and retrofit projects, allowing you to select the most suitable solution for your application, installation environment and operational requirements.

The HC Range

  • HC1000 – General purpose medium-voltage AC drive
  • HC1000S – Single-sided maintenance design for restricted spaces
  • HC1000W – Water-cooled drives for ultra-high-power applications
  • HC2000 – Four-quadrant regenerative medium-voltage AC drive

HC-Series Technical Specifications

  • Rated Capacity: 315–45,000kVA (varies by model)
  • Rated Input Voltage: 6kV / 10kV (custom voltages available)
  • Motor Compatibility: Asynchronous (Induction) & Permanent Magnet Synchronous Motors*
  • Control Modes: V/F, Open-loop Vector & Closed-loop Vector Control
  • Output Frequency: 0–120Hz
  • Input Power Factor: >0.96
  • Drive Efficiency: ≥98.5%
  • Communication: RS485 (Modbus RTU)
  • Cooling: Forced air or water cooling (varies by model)

*The HC2000 also supports Electrically Excited Synchronous Motors (EESM) as part of its advanced regenerative platform.

See datasheet for full technical specifications

HC1000

General Purpose Medium-Voltage AC Drive

The HC1000 is Hiconics’ general-purpose medium voltage AC drive, designed for efficient and reliable variable speed control across a wide range of industrial applications. Its cascaded multilevel topology delivers a near-sinusoidal output waveform with low harmonic distortion, high input power factor and excellent motor compatibility, eliminating the need for additional harmonic filters or power factor correction equipment in most installations. Supporting both induction and permanent magnet synchronous motors, the HC1000 provides a flexible solution for pumps, fans, compressors, conveyors, mills and other heavy-duty industrial processes.

Key Features & Benefits

  • General-purpose medium voltage drive for a wide range of industrial applications.
  • IEEE 519 compliant input with low harmonic distortion, reducing power quality issues.
  • High input power factor (>0.96) without additional compensation equipment.
  • Supports V/F, open-loop vector and closed-loop vector control.
  • Compatible with both induction and permanent magnet synchronous motors.
  • Advanced functions including flying start, power cell bypass, ride-through capability, dual power switching and master-slave control.
  • High efficiency of up to 98.5% reduces operating costs.

See datasheet for full technical specifications

HC1000S

Single-Sided Maintenance Medium-Voltage AC Drive

The HC1000S builds on the proven HC1000 platform but introduces an innovative single-sided maintenance design, making it ideal for installations where floor space is limited. Its ultra-thin cabinet can be installed against a wall, significantly reducing the installation footprint while allowing all maintenance to be performed from one side. Combined with cloud connectivity and simplified servicing, the HC1000S is specifically engineered for modern industrial facilities where accessibility, maintenance efficiency and space utilization are critical.

Key Features & Benefits

  • Innovative single-sided maintenance design for easier servicing.
  • Ultra-thin cabinet allows installation against walls and in confined spaces.
  • Reduced installation footprint compared to conventional MV drives.
  • Remote monitoring and diagnostics via PC or mobile cloud platform.
  • IEEE 519 compliant with high power factor and low harmonic distortion.
  • Suitable for complex plant layouts where conventional double-sided maintenance is impractical.
  • Retains the proven electrical performance of the HC1000 platform.

See datasheet for full technical specifications

HC1000W

Water-Cooled Medium-Voltage AC Drive

Designed specifically for ultra-high-power applications, the HC1000W combines Hiconics’ medium voltage drive technology with a fully integrated water-cooling system to deliver exceptional performance in demanding environments. Capable of driving loads from 5MW to 60MW, the HC1000W offers significantly higher cooling efficiency than conventional air-cooled systems while reducing heat dissipation into the electrical room. Its sealed construction, redundant design and long-life components make it particularly well suited to mining, power generation, metallurgy and other harsh industrial environments.

Key Features & Benefits

  • Designed for ultra-high-power applications from 5MW to 60MW.
  • High-efficiency closed-loop water cooling minimizes cabinet temperatures.
  • Approximately 100 times greater heat exchange efficiency than conventional air cooling.
  • Reduced HVAC requirements through minimal heat rejection into electrical rooms.
  • Fully enclosed transformer cabinet for harsh environments.
  • Built for high dust, corrosive and high-altitude installations.
  • Long-life components with redundancy and fault tolerance improve system reliability.

See datasheet for full technical specifications

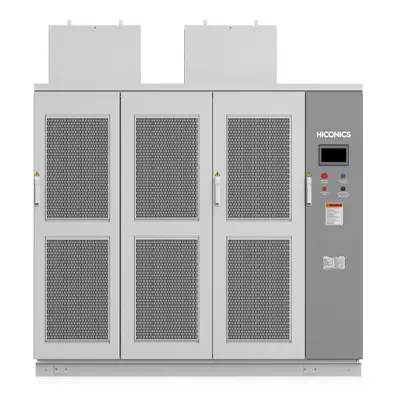

HC2000

Four-Quadrant Medium-Voltage AC Drive

The HC2000 is Hiconics’ premium four-quadrant regenerative medium voltage AC drive, engineered for applications requiring precise torque control, regenerative braking and bidirectional power flow. Built on a new four-quadrant platform with synchronous rectification technology, it provides full regenerative capability while reducing cabinet size by nearly 50% compared to previous generations. Advanced motor control algorithms, including Torque Predictive Control (TPC) and Feedforward Compensation (FFC), make the HC2000 particularly suitable for hoists, mine winders, test stands and other high-performance applications where accurate low-speed control and energy recovery are essential.

Key Features & Benefits

  • True four-quadrant operation with full regenerative capability.
  • Returns braking energy back to the electrical network for improved energy efficiency.
  • Nearly 50% smaller than previous-generation designs.
  • Supports induction, permanent magnet and electrically excited synchronous motors.
  • Torque Predictive Control (TPC) delivers accurate zero-speed holding for hoisting applications.
  • Automatic motor parameter identification for faster commissioning.
  • Closed-loop speed and current control provides fast dynamic response with minimal overshoot.

See datasheet for full technical specifications

Summary

Advanced Medium-Voltage Drive Technology

The Hiconics HC Series of medium-voltage AC drives combines advanced multilevel frequency inverter technology with high-performance motor control for industrial applications from 315kVA to 60MW. Designed for pumps, fans, compressors, conveyors, mills and other demanding applications, these medium-voltage variable frequency drives deliver exceptional efficiency, reliability and power quality.

The Hiconics HC Series offers a comprehensive range of medium-voltage frequency inverters for industrial motor control. Available in four specialized series, the range provides an efficient solution for both new installations and retrofit projects, allowing you to select the most suitable solution for your application, installation environment and operational requirements.

The HC Range

  • HC1000 – General purpose medium-voltage AC drive
  • HC1000S – Single-sided maintenance design for restricted spaces
  • HC1000W – Water-cooled drives for ultra-high-power applications
  • HC2000 – Four-quadrant regenerative medium-voltage AC drive

HC-Series Technical Specifications

  • Rated Capacity: 315–45,000kVA (varies by model)
  • Rated Input Voltage: 6kV / 10kV (custom voltages available)
  • Motor Compatibility: Asynchronous (Induction) & Permanent Magnet Synchronous Motors*
  • Control Modes: V/F, Open-loop Vector & Closed-loop Vector Control
  • Output Frequency: 0–120Hz
  • Input Power Factor: >0.96
  • Drive Efficiency: ≥98.5%
  • Communication: RS485 (Modbus RTU)
  • Cooling: Forced air or water cooling (varies by model)

*The HC2000 also supports Electrically Excited Synchronous Motors (EESM) as part of its advanced regenerative platform.

See datasheet for full technical specifications

HC1000

General Purpose Medium-Voltage AC Drive

The HC1000 is Hiconics’ general-purpose medium voltage AC drive, designed for efficient and reliable variable speed control across a wide range of industrial applications. Its cascaded multilevel topology delivers a near-sinusoidal output waveform with low harmonic distortion, high input power factor and excellent motor compatibility, eliminating the need for additional harmonic filters or power factor correction equipment in most installations. Supporting both induction and permanent magnet synchronous motors, the HC1000 provides a flexible solution for pumps, fans, compressors, conveyors, mills and other heavy-duty industrial processes.

Key Features & Benefits

  • General-purpose medium voltage drive for a wide range of industrial applications.
  • IEEE 519 compliant input with low harmonic distortion, reducing power quality issues.
  • High input power factor (>0.96) without additional compensation equipment.
  • Supports V/F, open-loop vector and closed-loop vector control.
  • Compatible with both induction and permanent magnet synchronous motors.
  • Advanced functions including flying start, power cell bypass, ride-through capability, dual power switching and master-slave control.
  • High efficiency of up to 98.5% reduces operating costs.

See datasheet for full technical specifications

HC1000S

Single-Sided Maintenance Medium-Voltage AC Drive

The HC1000S builds on the proven HC1000 platform but introduces an innovative single-sided maintenance design, making it ideal for installations where floor space is limited. Its ultra-thin cabinet can be installed against a wall, significantly reducing the installation footprint while allowing all maintenance to be performed from one side. Combined with cloud connectivity and simplified servicing, the HC1000S is specifically engineered for modern industrial facilities where accessibility, maintenance efficiency and space utilization are critical.

Key Features & Benefits

  • Innovative single-sided maintenance design for easier servicing.
  • Ultra-thin cabinet allows installation against walls and in confined spaces.
  • Reduced installation footprint compared to conventional MV drives.
  • Remote monitoring and diagnostics via PC or mobile cloud platform.
  • IEEE 519 compliant with high power factor and low harmonic distortion.
  • Suitable for complex plant layouts where conventional double-sided maintenance is impractical.
  • Retains the proven electrical performance of the HC1000 platform.

See datasheet for full technical specifications

HC1000W

Water-Cooled Medium-Voltage AC Drive

Designed specifically for ultra-high-power applications, the HC1000W combines Hiconics’ medium voltage drive technology with a fully integrated water-cooling system to deliver exceptional performance in demanding environments. Capable of driving loads from 5MW to 60MW, the HC1000W offers significantly higher cooling efficiency than conventional air-cooled systems while reducing heat dissipation into the electrical room. Its sealed construction, redundant design and long-life components make it particularly well suited to mining, power generation, metallurgy and other harsh industrial environments.

Key Features & Benefits

  • Designed for ultra-high-power applications from 5MW to 60MW.
  • High-efficiency closed-loop water cooling minimizes cabinet temperatures.
  • Approximately 100 times greater heat exchange efficiency than conventional air cooling.
  • Reduced HVAC requirements through minimal heat rejection into electrical rooms.
  • Fully enclosed transformer cabinet for harsh environments.
  • Built for high dust, corrosive and high-altitude installations.
  • Long-life components with redundancy and fault tolerance improve system reliability.

See datasheet for full technical specifications

HC2000

Four-Quadrant Medium-Voltage AC Drive

The HC2000 is Hiconics’ premium four-quadrant regenerative medium voltage AC drive, engineered for applications requiring precise torque control, regenerative braking and bidirectional power flow. Built on a new four-quadrant platform with synchronous rectification technology, it provides full regenerative capability while reducing cabinet size by nearly 50% compared to previous generations. Advanced motor control algorithms, including Torque Predictive Control (TPC) and Feedforward Compensation (FFC), make the HC2000 particularly suitable for hoists, mine winders, test stands and other high-performance applications where accurate low-speed control and energy recovery are essential.

Key Features & Benefits

  • True four-quadrant operation with full regenerative capability.
  • Returns braking energy back to the electrical network for improved energy efficiency.
  • Nearly 50% smaller than previous-generation designs.
  • Supports induction, permanent magnet and electrically excited synchronous motors.
  • Torque Predictive Control (TPC) delivers accurate zero-speed holding for hoisting applications.
  • Automatic motor parameter identification for faster commissioning.
  • Closed-loop speed and current control provides fast dynamic response with minimal overshoot.

See datasheet for full technical specifications
