Industrial DC drive providing reliable and precise speed control for DC motor applications.

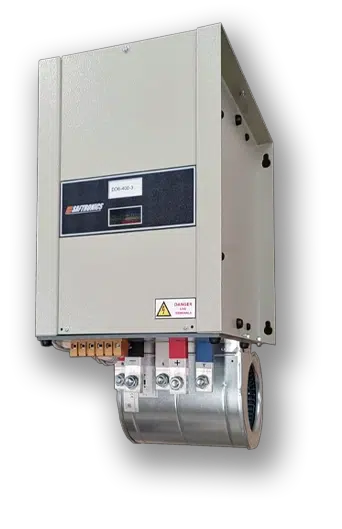

Saftronics DD6 DC Drive
  • Single quadrant DC drive design
  • Tacho or voltage feedback control
  • Extensive fault monitoring and protection
  • PLC compatible with analogue control inputs
Enquire

Saftronics DD6 Enquiry



Saftronics DD6 Enquiry
Saftronics DD6 DC Drive

Technical Overview

Voltage Power Current
400V 20–600kW 50–1500A
525V 26–780kW 50–1500A
Request a quote

Saftronics DD6 Request A Quote



DD6 Request A Quote

DD6 Configuration

Please select required size

Model: DD6-50

Supply Voltage: 400V

Load Power: 20kW

Load Current: 50A

Frame Size: A

Model: DD6-50

Supply Voltage: 525V

Load Power: 26kW

Load Current: 50A

Frame Size: A

Model: DD6-100

Supply Voltage: 400V

Load Power: 40kW

Load Current: 100A

Frame Size: A

Model: DD6-100

Supply Voltage: 525V

Load Power: 52kW

Load Current: 100A

Frame Size: A

Model: DD6-200

Supply Voltage: 400V

Load Power: 80kW

Load Current: 200A

Frame Size: A

Model: DD6-200

Supply Voltage: 525V

Load Power: 100kW

Load Current: 200A

Frame Size: A

Model: DD6-300

Supply Voltage: 400V

Load Power: 120kW

Load Current: 300A

Frame Size: B

Model: DD6-300

Supply Voltage: 525V

Load Power: 155kW

Load Current: 300A

Frame Size: B

Model: DD6-400

Supply Voltage: 400V

Load Power: 160kW

Load Current: 400A

Frame Size: B

Model: DD6-400

Supply Voltage: 525V

Load Power: 210kW

Load Current: 400A

Frame Size: B

Model: DD6-500

Supply Voltage: 400V

Load Power: 200kW

Load Current: 500A

Frame Size: B

Model: DD6-500

Supply Voltage: 525V

Load Power: 260kW

Load Current: 500A

Frame Size: B

Model: DD6-800

Supply Voltage: 400V

Load Power: 320kW

Load Current: 800A

Frame Size: C

Model: DD6-800

Supply Voltage: 525V

Load Power: 420kW

Load Current: 800A

Frame Size: C

Model: DD6-1500

Supply Voltage: 400V

Load Power: 600kW

Load Current: 1500A

Frame Size: C

Model: DD6-1500

Supply Voltage: 525V

Load Power: 780kW

Load Current: 1500A

Frame Size: C

Summary

Reliable DC Motor Control Performance

The Saftronics DD6 Avenger DC Drive is a compact and cost-effective DC drive designed for industrial applications requiring reliable speed regulation and motor control.

The drive offers excellent speed holding performance, extensive fault monitoring, and flexible feedback options. With support for both tacho and voltage feedback, the DD6 provides accurate motor control across a wide operating range.

Available as either a kit or enclosed solution, the DD6 Avenger DC Drive delivers dependable operation for new installations, retrofit projects, and replacement applications.

Specifications

Electrical Performance

  • Single quadrant DC drive
  • Supply voltage: 400Vac / 525Vac
  • Frequency: 50Hz ±2%
  • Ambient temperature: 40°C maximum
  • Altitude: 1500m above sea level
  • Current overload rating:
  • 150% full load current for 15 seconds
  • Six times per hour

Speed Control

  • Speed range:
  • 100:1 with tacho feedback
  • 20:1 with voltage feedback

Speed Regulation

  • 0.1% speed holding with tacho feedback
  • 2.5% speed holding with voltage feedback and IR compensation

Control Inputs

  • 0–10VDC input
  • 4–20mA input
  • PLC compatibility
  • Jog control functionality

Outputs

  • 0–10V output for:
  • Speed indication
  • Current indication
  • Voltage indication

See datasheet for full technical specifications

Features

Advanced DC Drive Control & Protection

  • Compact industrial design
  • Improved reliability architecture
  • Extensive fault monitoring
  • High-speed electronic protection
  • Tacho or voltage feedback selection
  • PLC integration capability
  • Jog control functionality
  • IR compensation
  • Electronic motor protection
  • Automatic voltage feedback operation on tacho loss
  • Comprehensive diagnostic indication
  • Available as kit or enclosed unit

Optional Features

  • Forward / Reverse logic
  • Dynamic braking
  • Field weakening control
  • Mains contactor integration

Applications

Suitable for Industrial DC Motor Systems

The DD6 Avenger DC Drive is ideal for:

  • Conveyor systems
  • Material handling equipment
  • Process machinery
  • Hoisting systems
  • Industrial production equipment
  • Existing DC motor installations
  • Retrofit and upgrade projects
  • General industrial speed control applications
Summary

Reliable DC Motor Control Performance

The Saftronics DD6 Avenger DC Drive is a compact and cost-effective DC drive designed for industrial applications requiring reliable speed regulation and motor control.

The drive offers excellent speed holding performance, extensive fault monitoring, and flexible feedback options. With support for both tacho and voltage feedback, the DD6 provides accurate motor control across a wide operating range.

Available as either a kit or enclosed solution, the DD6 Avenger DC Drive delivers dependable operation for new installations, retrofit projects, and replacement applications.

Specifications

Electrical Performance

  • Single quadrant DC drive
  • Supply voltage: 400Vac / 525Vac
  • Frequency: 50Hz ±2%
  • Ambient temperature: 40°C maximum
  • Altitude: 1500m above sea level
  • Current overload rating:
  • 150% full load current for 15 seconds
  • Six times per hour

Speed Control

  • Speed range:
  • 100:1 with tacho feedback
  • 20:1 with voltage feedback

Speed Regulation

  • 0.1% speed holding with tacho feedback
  • 2.5% speed holding with voltage feedback and IR compensation

Control Inputs

  • 0–10VDC input
  • 4–20mA input
  • PLC compatibility
  • Jog control functionality

Outputs

  • 0–10V output for:
  • Speed indication
  • Current indication
  • Voltage indication

See datasheet for full technical specifications

Features

Advanced DC Drive Control & Protection

  • Compact industrial design
  • Improved reliability architecture
  • Extensive fault monitoring
  • High-speed electronic protection
  • Tacho or voltage feedback selection
  • PLC integration capability
  • Jog control functionality
  • IR compensation
  • Electronic motor protection
  • Automatic voltage feedback operation on tacho loss
  • Comprehensive diagnostic indication
  • Available as kit or enclosed unit

Optional Features

  • Forward / Reverse logic
  • Dynamic braking
  • Field weakening control
  • Mains contactor integration
Applications

Suitable for Industrial DC Motor Systems

The DD6 Avenger DC Drive is ideal for:

  • Conveyor systems
  • Material handling equipment
  • Process machinery
  • Hoisting systems
  • Industrial production equipment
  • Existing DC motor installations
  • Retrofit and upgrade projects
  • General industrial speed control applications
